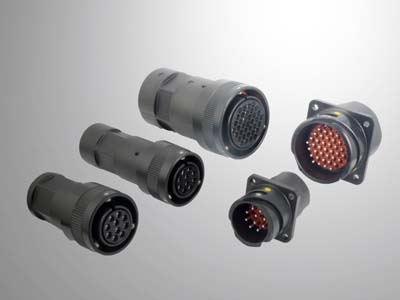

JAE VG95234 Qualified Circular Connector "JK06 Series"

JAE has launched the JK06 Series, waterproof circular connectors for railway vehicles and related electronic equipment.

The JK06 Series can be widely used for various industrial equipment, such as machine tools, robots, communication devices, and sound devices in addition to railway vehicles; the JK06 Series is designed in accordance with the German VG95234 specifications and has superior environmental resistance with one-touch mating structure using a bayonet locking system

Because the compatibility with international standards is often required for overseas railway vehicles, the JK06 Series is also compliant with NFF61-030 (French standards: Rolling stock), EN50467 (European standards: Railway applications Rolling stock) and others frequently used in Europe.

Features

• One-touch mating type connector using a bayonet locking system compatible with VG95234 (German circular connecter specifications)
• Inter-mateable with other products that are compliant to the same standards.
• Durable structure which is resistant to vibration and shock.
• Compatible with harness assembly using a conduit.
• Water resistant equivalent to IP67 rating when mated (proven waterproof at 1m for 24 hours

Applicable Markets

Railway vehicles related devices, computers, business machines, communication devices (terminals, mobiles), measuring device, broad casting/ sound devices, machine tools, robots, servo motors, and other various industrial equipment such as semiconductor manufacturing equipment
