JAE Developed "HB01 Series" Waterproof Cable-to-Cable Connector

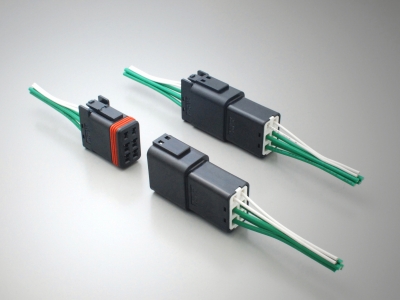

JAE has recently developed the HB01 Series, a waterproof cable-to-cable connector ideally suited for the industrial machinery market.

As robots and other industrial machinery are becoming increasingly compact, multi-axis, and multi-functional, the installation space for devices such as servo motors is decreasing. This has created a demand for compact, low-profile connectors that have waterproof performance as well as compatibility with applications where board mounting is not possible.

The HB01 Series perfectly meets this demand. The HB01 Series connector features a mechanical lock which withstands vibration and pulling, and also saves space by utilizing a hybrid structure that allows for wiring of both power and signal lines in one connector.

This connector achieves high-waterproof performance (IP67) by sealing the mating area with a seal ring and the cable pull-out area with a grommet inside the connector.

The HB01 Series has a structure that guides the terminals with a rear cover on the back of the connector, and allows for improved harness workability.

To meet the broad variety of customer needs, the HB01 Series is compatible with a wide range of cable sizes, and two barrel sizes can be selected for both power and signal terminals.

Features:

• Hybrid structure for power line and signal line wiring.
• Mechanical locking structure ensures secure mating.
• Improved workability with a clear click sound and excellent mating/unmating operation.
• Improved harness workability.
• IP67 waterproof when mated.
• Terminals are compatible with a wide range of cable sizes

Applicable Markets:

• Robotics, servo motors, and various industrial machinery such as machine tools
