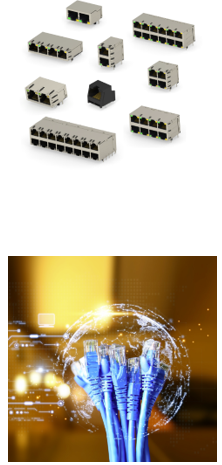

TE Connectivity - MODULAR JACKS – RJ45

TE Connectivity (TE’s) modular jacks - RJ45 deliver an end-to-end, highly integrated Ethernet connectivity solution-from the cable all the way to the physical layer. By embedding the magnetics within the jack itself, they help achieve enhanced EMI shielding, boosting both connection integrity and signal reliability. Available in speeds up to 10Gbps, the portfolio addresses surging bandwidth demands with exceptional high-speed performance, while Power over-Ethernet (PoE) support helps to enable remote device powering directly over the data line.

Product Benefits & Features

Future-proof Bandwidth:

• Up to 10Gbps speed
• Supports 10M/100M/1G/2.5G/5G/10G Ethernet for maximum flexibility for diverse data transfer requirements

Power + Data Simplicity:

• PoE+ (IEEE 802.3at) eliminates external power bricks and simplifies field installation

Reliable Signal Transmission:

• Integrated magnetics allow for higher EMI shielding and help create more reliable connections and reduce signal degradation

Environmental Resilience:

• Extended temperature range (-40°C to 85°C) allows for more robust operations and addresses the needs for demanding applications

Design Flexibility:

• Right angle, vertical, and inverted mounting options
• Multiple LED and light pipe color options
• 1xN, 2xN configurations available

Target Applications

Communications & Ethernet:

• Data centers
• Routers
• Switches
• Base stations

Industrial Applications:

• Programmable logic controllers
• I/O Modules
• Servo drives
• Industrial PCs
• Industrial machinery
• Industrial production equipment
• Automated test equipment

Medical:

• Medical imaging
• Bedside monitors

Read more about Modular Jacks - RJ45
