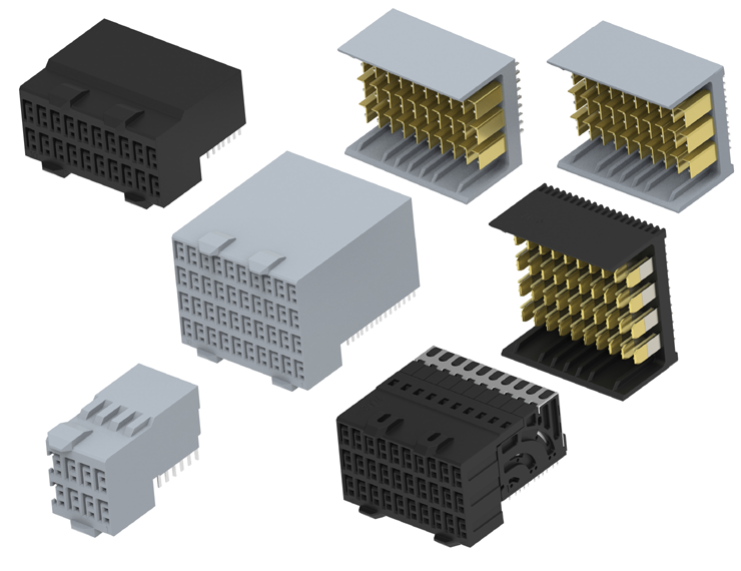

TE - Z-Pack High-Speed Backplane Solutions

TE Connectivity’s (TE) Z-PACK HM-ZD connector portfolio provides data rates of up to 56 Gbps while retaining backwards compatibility with previous versions of the HM-ZD family to allow for easier upgrades in the field. Relevant for Advanced Telecommunications Computing Architecture (ATCA) next-generation applications including options for traditional and co-planar architectures, the Z-PACK HM-ZD.

Product Family is well suited for data center applications including servers and routers, as well as test & measurement, medical imaging devices and industrial automation.

Key Benefits:

• Backwards compatibility allows for field data rate upgrades using Z-PACK HM-eZD++ receptacles plugged into existing Z-PACK HM-ZD headers
• Multiple data rate options available with Z-PACK HM-ZD connectors (12.5 Gbps), HM-ZD+ connectors (15 Gbps), HM-eZD+ connectors (20-25 Gbps), and HM-eZD++ connectors (56 Gbps (PAM4) and 32 Gbps (NRZ))
• Relevant for Advanced Telecommunications Computing Architecture (ATCA) and provides a variety of traditional and co-planar options
• Global design and engineering support allows TE to provide a variety of products with customer options available

Key Features:

• Backwards compatibility allows for field data rate upgrades using Z-PACK HM-eZD++ receptacles plugged into existing Z-PACK HM-ZD headers
• Multiple data rate options available with Z-PACK HM-ZD connectors (12.5 Gbps), HM-ZD+ connectors (15 Gbps), HM-eZD+ connectors (20-25 Gbps), and HM-eZD++ connectors (56 Gbps (PAM4) and 32 Gbps (NRZ))
• Relevant for Advanced Telecommunications Computing Architecture (ATCA) and provides a variety of traditional and co-planar options
• Global design and engineering support allows TE to provide a variety of products with customer options available

Applications:

• Server Solutions
• Switching and Routing
• Data Centers
• Industrial Automation
• Medical Imaging
• Test and Measuremen

Read more about Z-Pack High-Speed Backplane Solutions

Learn more TE Connectivity products, please contact your sales representative at Heilind Asia Pacific.
